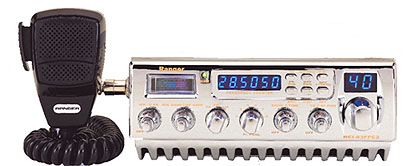

Ranger RCI 63FFC2
(Click on the image for a larger view)
(Scroll down to purchase)

Basics: 10 meter AM/FM amateur transceiver, 12 bands of operation, frequency counter, echo, roger beep, talkback, +10KHz, adjustable RF power level from the front panel and SWR meter function.
Switch functions: Channel and band selection, PA/FM/AM mode selection, echo on/off, NB/ANL on/off, SWR function, roger beep on/off, talkback on/off, brt/dim, and + 10KHz on/off
Controls: Volume, squelch, mike gain, RF gain, talkback volume, RF power level, echo level and speed controls.
Dimensions: W 7 7/8" x L 10 3/4 " x T 2 7/8"
Included Accessories: Stock mike, mike hanger clip, mounting bracket, side mounting screws, power cord, and owners manual
Warranty: not available at this time
Condition: New Retail Box (NOT Refurbished)

The Ranger RCI-63FFC2 amateur mobile transceiver offers exceptional value for Novice and Technician Class amateurs upgrading to Tech Plus and higher. This unit is designed for easy, reliable and safe mobile operation. Available in high power versions, the RCI-63FFC2 transceiver provides excellent receiver sensitivity and multi-mode operation at a fraction of the cost of full band transceivers. The easy-to-use frequency selection system covers the 10- meter amateur band in 6-band segments. Actual operating frequency is accurately displayed in the 6-digit LED display that’s easy to read even in bright sunlight. A channel indicator speeds return to a popular or previously used frequency without interfering with the operator's attention to the road.Selectable Automatic Noise Limiter (ANL) and Noise Blanker assures noise reduction during mobile operation. Front panel RF power output control and RF Gain controls enable the operator to set transmitter power and receiver sensitivity to match operating conditions. Additional front panel controls assure optimum performance under widely varying conditions: A +10 kHz switch complements the frequency selection system by shifting the Tx and Rx frequencies up by a known amount for increased driving safety. Easy-to-read panel meter - three-functions indicating received signal strength, transmitter power output, and antenna SWR.

Turning up the Transmitter's wattage.
Adjusting the modulation for maximum output without distortion.
Modifying the mike amp circuit for more modulation if needed.
Aligning the receiver for optimum signal to noise ratio.
Adjusting the squelch range.

Frequency adjustment to zero tolerance.
Frequency counter display calibration. (If applicable)
Calibrate the Transmit and Receive meter settings.
Perform a complete check of all functions.
Perform a visual of the circuit board for flaws.
